Images related to my work with the CMOS-SEED chip.

Copyright notice: You may not copy or modify the designs here displayed without giving the author or authors the proper credit.

My contribution on the CMOS-SEED chip:

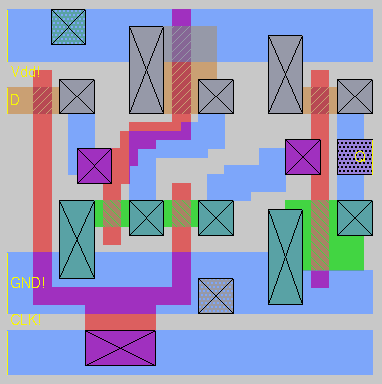

 Design of a compact flip-flop using single clock.

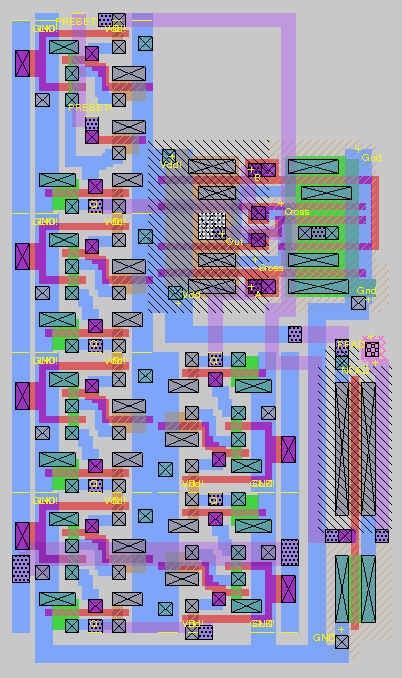

Optic pseudo-number generator designed using the flip-flop above.

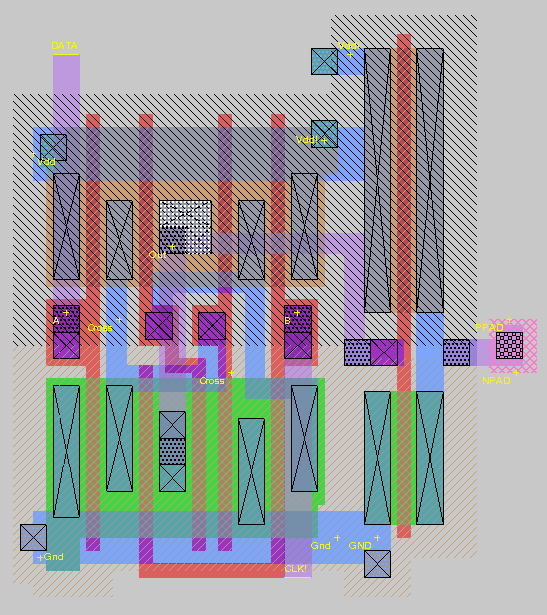

 Small manchester-encoded optical transmitter.

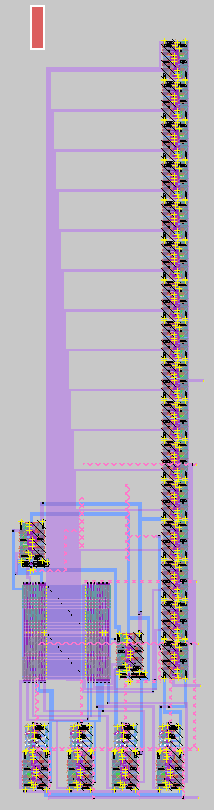

 Electro-optic programmable logic array.

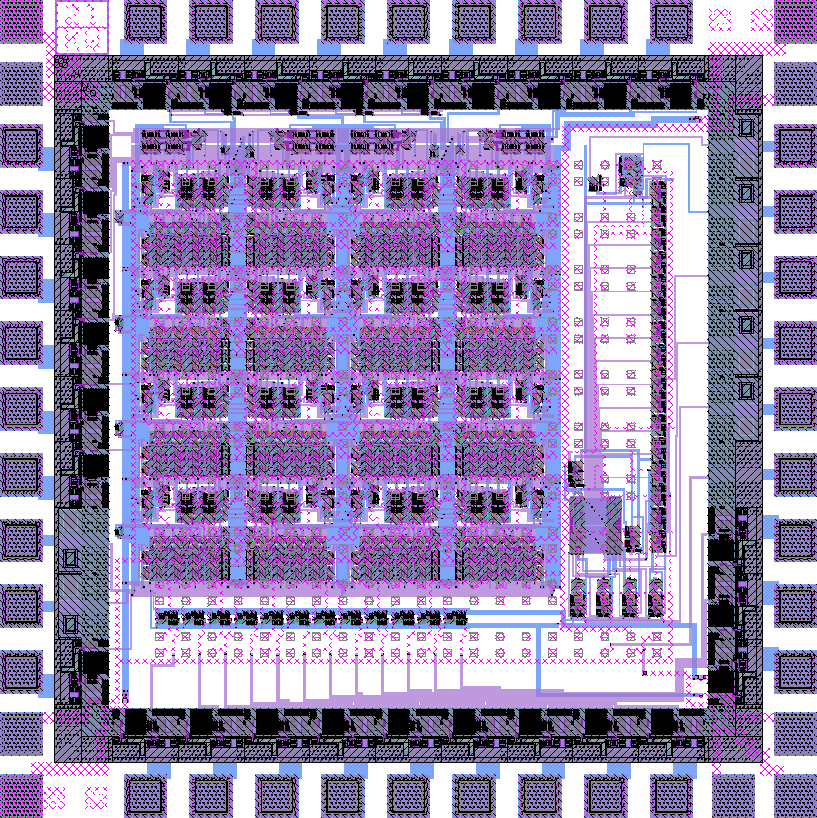

Final layout of C-SEED chip developed by Tim Slagle, Kelvin Wagner and myself.

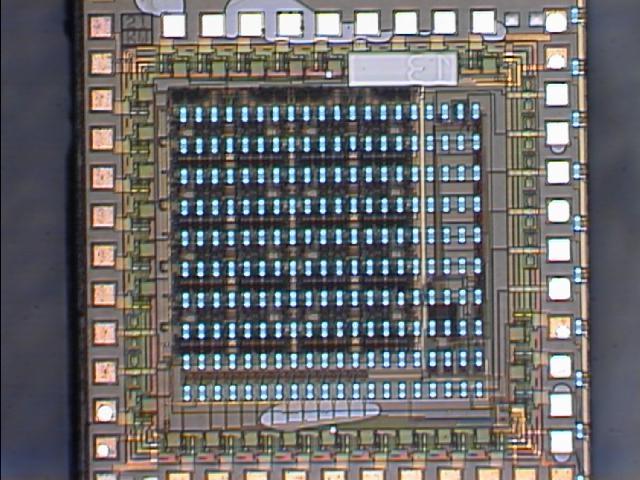

Picture of the finished chip.
